Quick-Connect Coupler SM Series Male Thread Socket for All Purpose, Single End Shut Off Coupler
$7.25
Quick-Connect Couplers, Single, SM Series Male Thread Socket
-
Size：1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″
- One way ball locking most ordinary type of sockets &plugs. When these sockets and plugs are disconnected,liquid or gas inside will stop flowing automatically on the socket side.
- It is a convenient, compact coupling which connects and disconnects easily, providing dependable service for fluid transfer of hydraulic, pneumatic and vacuum systems.
| Male Pipe Thread | Part No. | Steel | Brass | S.Steel |
| Code | Code | Code | ||
| PT 1/8″ | 10 SM | 351301 | 351311 | 351321 |
| PT 1/4″ | 20 SM | 351302 | 351312 | 351322 |
| PT 3/8″ | 30 SM | 351303 | 351313 | 351323 |
| PT 1/2″ | 40 SM | 351304 | 351314 | 351324 |
| PT 1/2″ | 400 SM | 351305 | 351315 | 351325 |
| PT 3/4″ | 600 SM | 351306 | 351316 | 351326 |
| PT 1″ | 800 SM | 351307 | 351317 | 351327 |
Pressure Rating & Application
Withstanding capacity of main body materials againstpressure is as follows.
| Material | Steel | Brass | Stainless steel |
| Working pressure | 1.5MPa (15kgf/c㎡) |
1.0MPa (10kgf/c㎡) |
1.5MPa (15kgf/c㎡) |
| Pressure resistance | 2.0MPa (20kgf/c㎡) |
1.5MPa (15kgf/c㎡) |
2.0MPa (20kgf/c㎡) |
| Major Applicable Fiuid | Air | Air , Water | Air , Water |

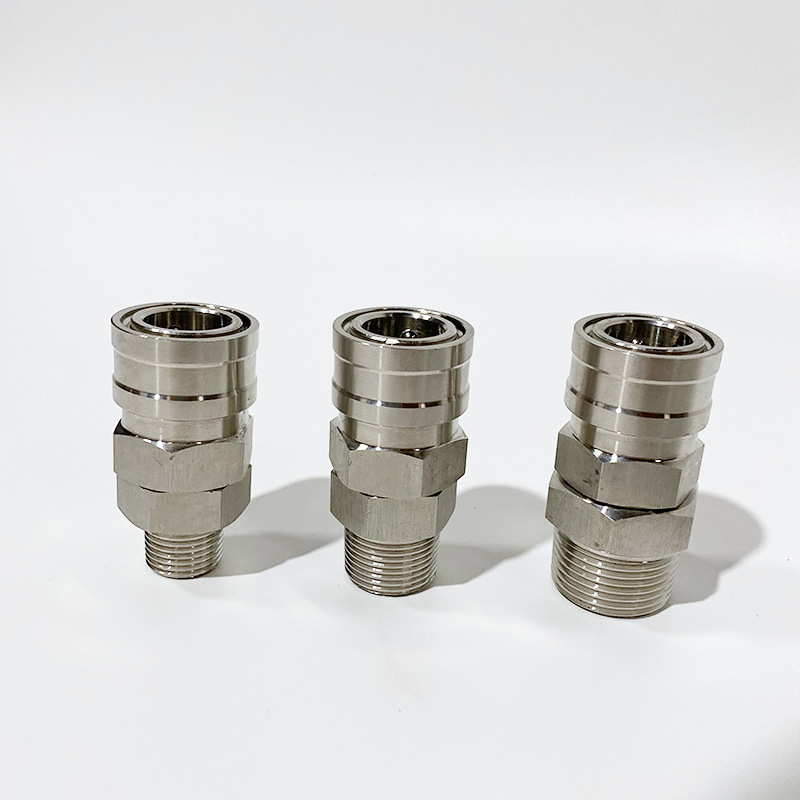

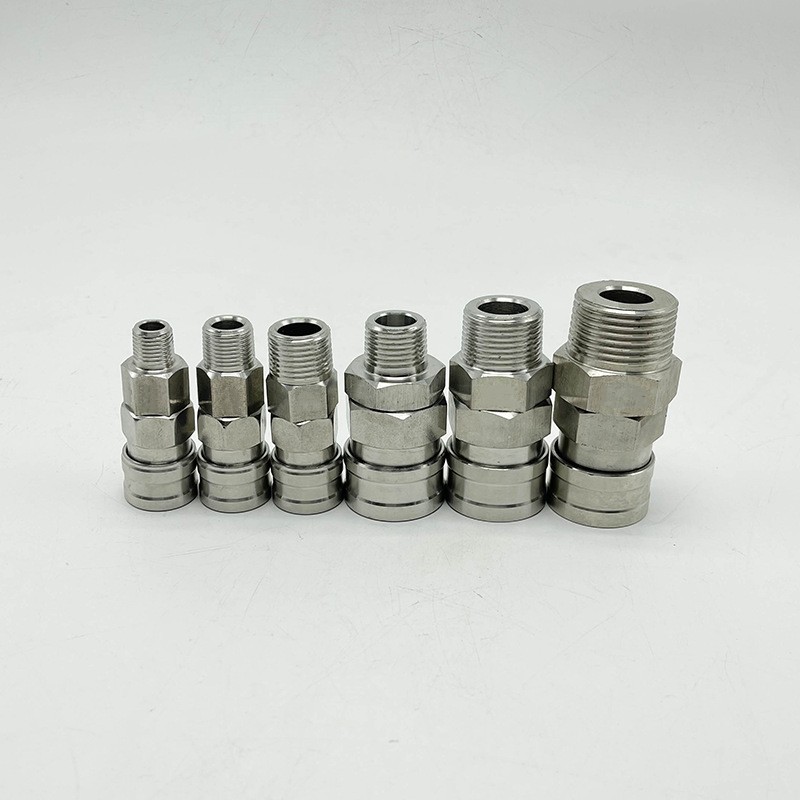

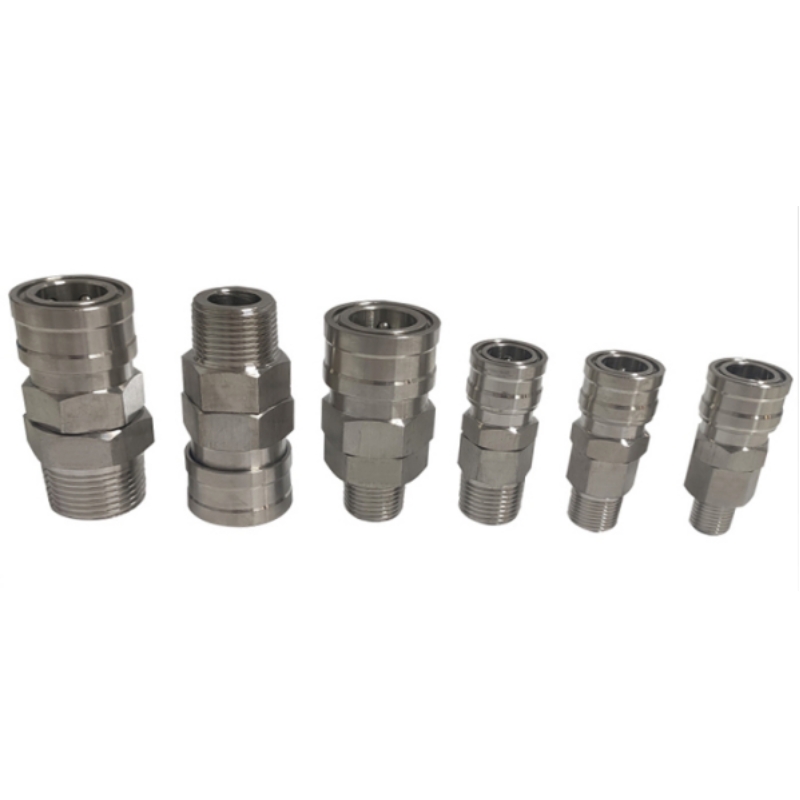

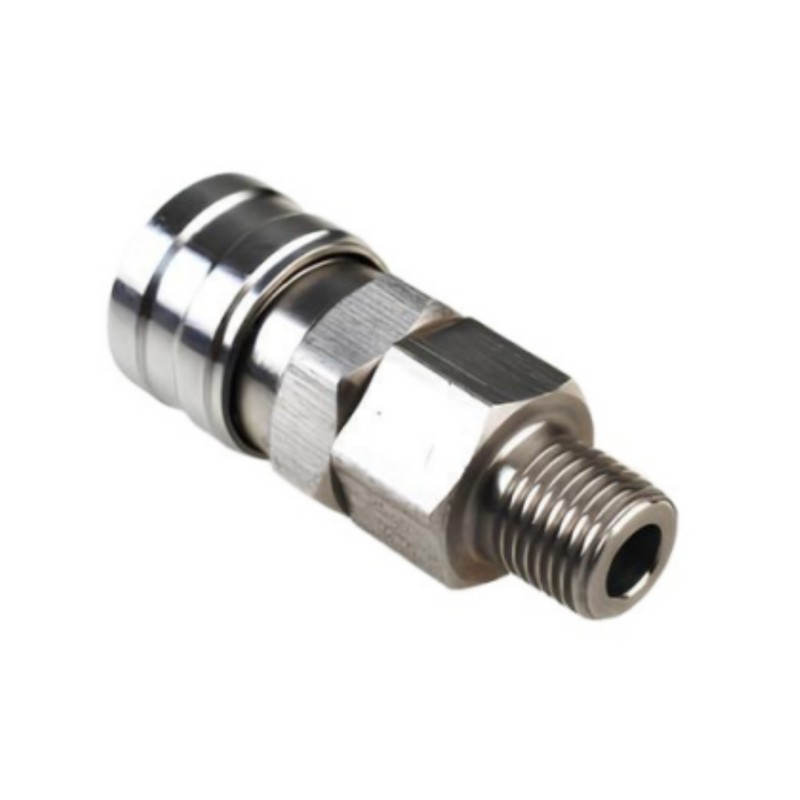

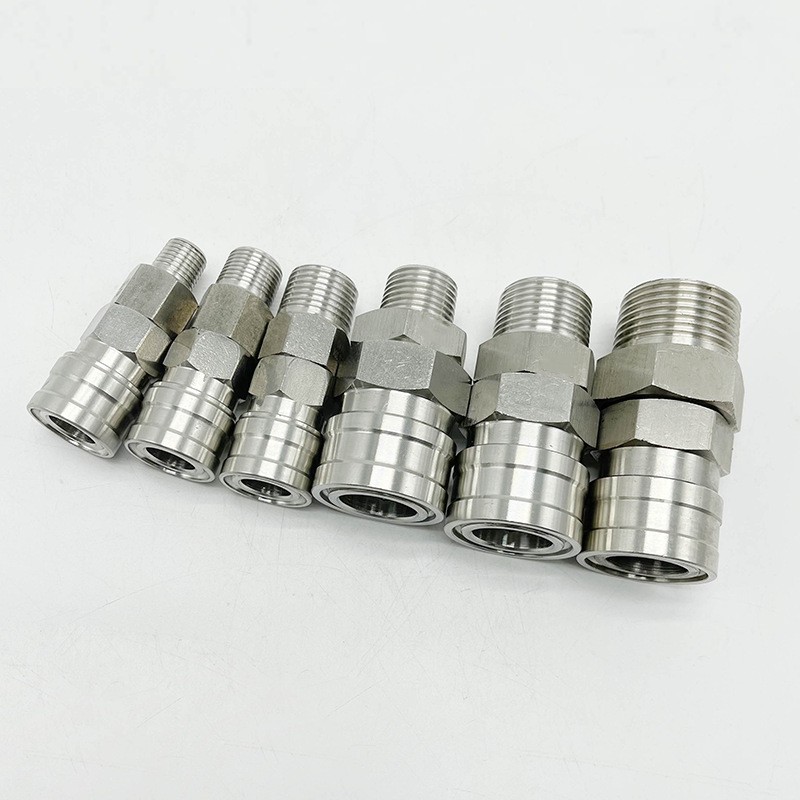

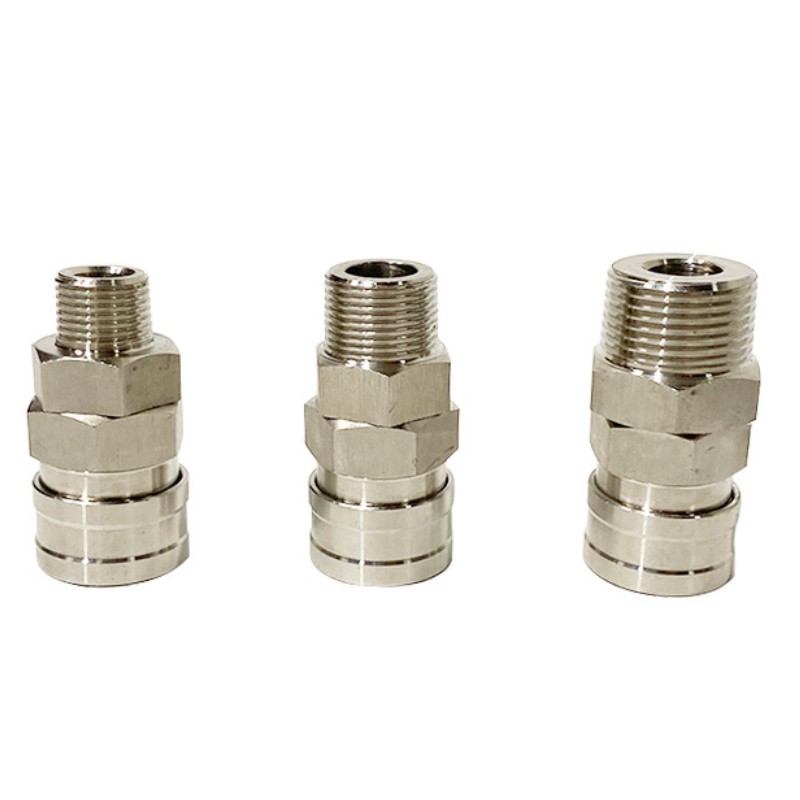

Product show
| Weight | 0.03 kg |
|---|---|
| Size | 351302, STEEL 20 SM,PT 1/4, 351303, STEEL 30 SM,PT 3/8, 351304, STEEL 40 SM,PT 1/2, 351311, BRASS 10 SM,PT 1/8, 351312, BRASS 20 SM,PT 1/4, 351313, BRASS 30 SM,PT 3/8, 351314, BRASS 40 SM,PT 1/2, 351316, BRASS 600 SM,PT 3/4, 351321, ST.STEEL 10 SM,PT 1/8, 351322, ST.STEEL 20 SM,PT 1/4, 351323, ST.STEEL 30 SM,PT 3/8, 351324, ST.STEEL 40 SM,PT 1/2, 351325, ST.STEEL 400 SM,PT 1/2, 351326, ST.STEEL 600 SM,PT 3/4, 351327, ST.STEEL 800 SM,PT 1 |
