Quick-Connect Coupler PM Series Male Thread Plug for All Purpose, Single End Shut Off Coupler
$5.59
Quick-Connect Couplers, Single, PM Series Male Thread Plug
-
Size：1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″
- One way ball locking most ordinary type of sockets &plugs. When these sockets and plugs are disconnected,liquid or gas inside will stop flowing automatically on the socket side.
- It is a convenient, compact coupling which connects and disconnects easily, providing dependable service for fluid transfer of hydraulic, pneumatic and vacuum systems.
| Male Pipe Thread | Part No. | Steel | Brass | S.Steel |
| Code | Code | Code | ||
| PT 1/8″ | 10 PM | 351331 | 351341 | 351351 |
| PT 1/4″ | 20 PM | 351332 | 351342 | 351352 |
| PT 3/8″ | 30 PM | 351333 | 351343 | 351353 |
| PT 1/2″ | 40 PM | 351334 | 351344 | 351354 |
| PT 1/2″ | 400 PM | 351335 | 351345 | 351355 |
| PT 3/4″ | 600 PM | 351336 | 351346 | 351356 |
| PT 1″ | 800 PM | 351337 | 351347 | 351357 |
Pressure Rating & Application
Withstanding capacity of main body materials againstpressure is as follows.
| Material | Steel | Brass | Stainless steel |
| Working pressure | 1.5MPa (15kgf/c㎡) |
1.0MPa (10kgf/c㎡) |
1.5MPa (15kgf/c㎡) |
| Pressure resistance | 2.0MPa (20kgf/c㎡) |
1.5MPa (15kgf/c㎡) |
2.0MPa (20kgf/c㎡) |
| Major Applicable Fiuid | Air | Air , Water | Air , Water |

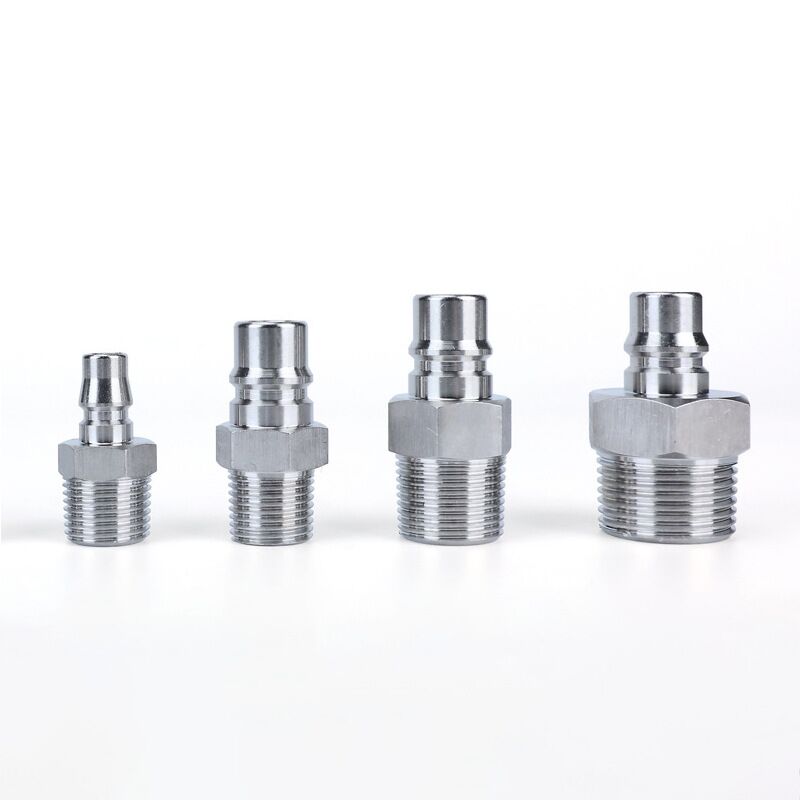

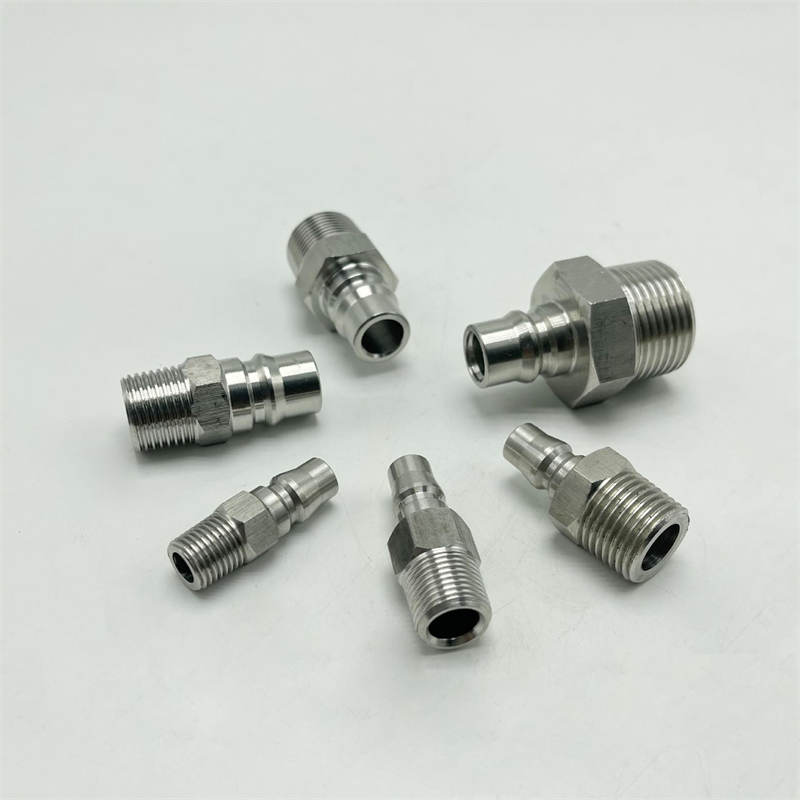

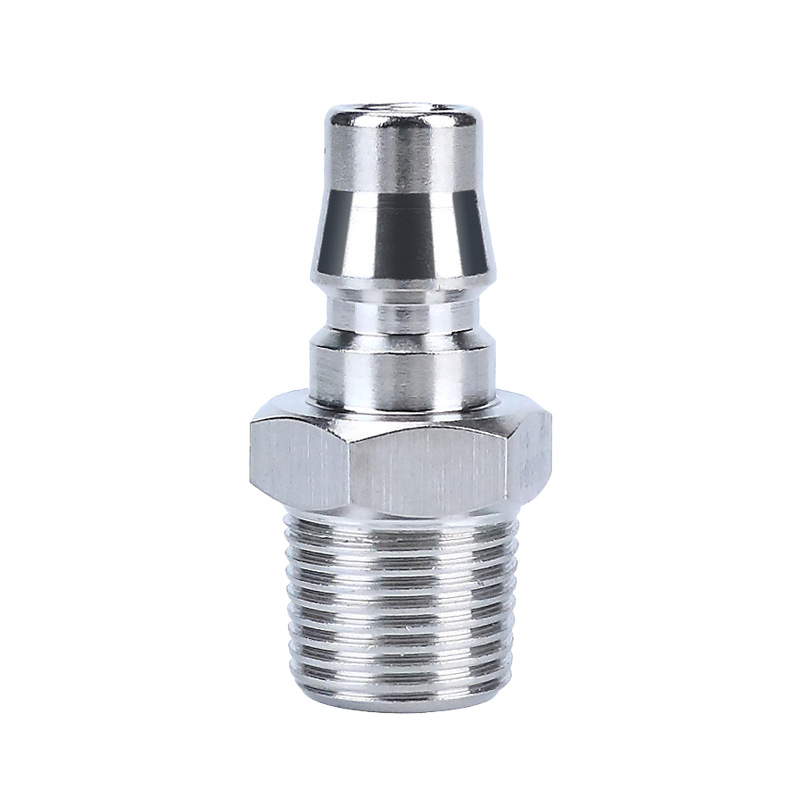

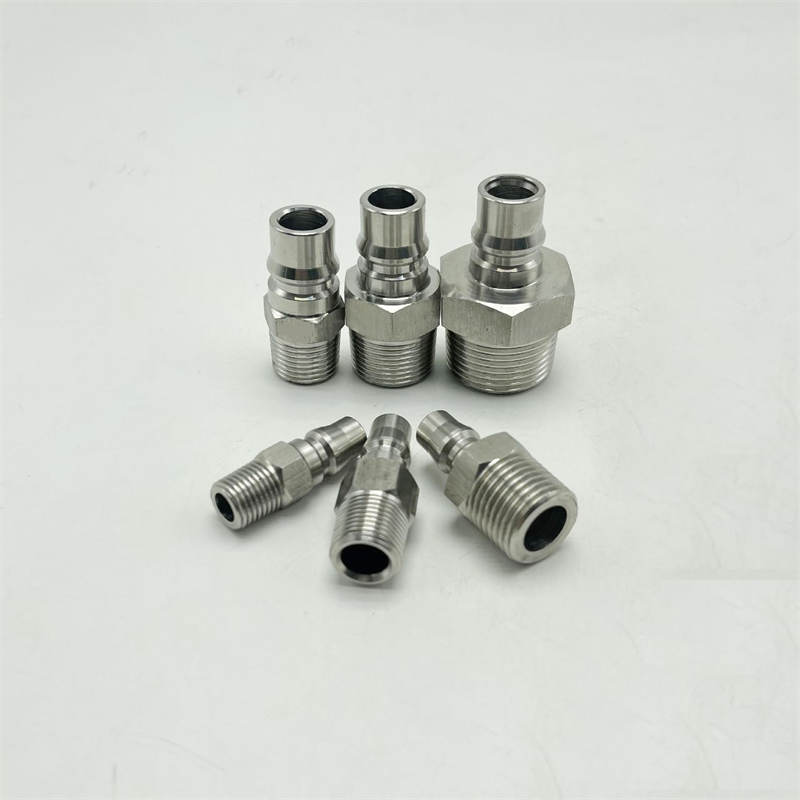

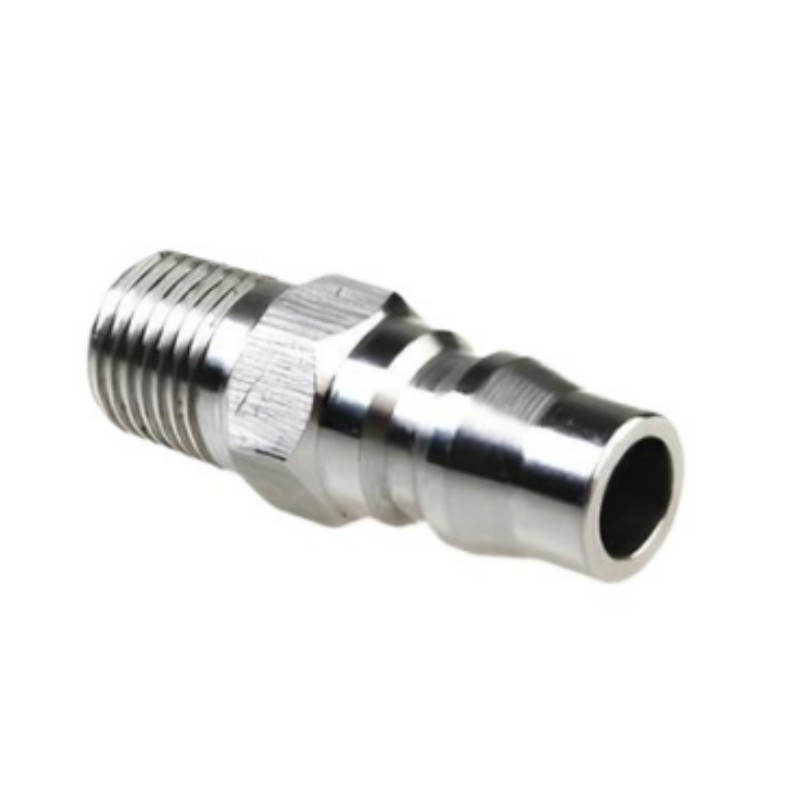

Product show
| Weight | 0.03 kg |
|---|---|
| Size | 351332, STEEL 20 PM, PT-1/4, 351333, STEEL 30 PM, PT-3/8, 351334, STEEL 40 PM, PT-1/2, 351351, ST.STEEL 10 PM, PT-1/8, 351352, ST.STEEL 20 PM, PT-1/4, 351353, ST.STEEL 30 PM, PT-3/8, 351354, ST.STEEL 40 PM, PT-1/2, 351355, ST.STEEL 400 PM, PT-1/2, 351356, ST.STEEL 600 PM, PT-3/4, 351357, ST.STEEL 800 PM, PT-1 |
