Cam and Groove Couplings Type A Plug (Male Coupler)with Female Thread
$7.29
Cam and Groove Couplings Type A Plug
- They are quick,tight, leakproof connections to pipe,tubing, hose or tanks and provide quick liquid and material hose connections that seal tight and stay tight.
- Sizes from 1/2″ to 4″are available.
- They are made of aluminium alloy,brass or stainless steel for use with liquids,vapors, gases and air-blown dry products.
- Suitable for usewith single connections and where changes in connection toa number of tanks or outlets may be required.
| Material | Nom. Size lnch |
Rated Pressure (kgf/cm²) |
Test Pressure (cm²) |
Rated Temperature ℃ |
| Aluminium Alloy, Brass |
1/2 ~ 2 | 18 | 21 | 107 |
| 2-1/2 | 11 | |||
| 3 | 9 | |||
| 4 | 7 | |||
| Stainless Steel | 1/2 ~ 2 | 18 | 21 | 232 |
| 2-1/2 | 16 | |||
| 3 | 14 | |||
| 4 | 11 |

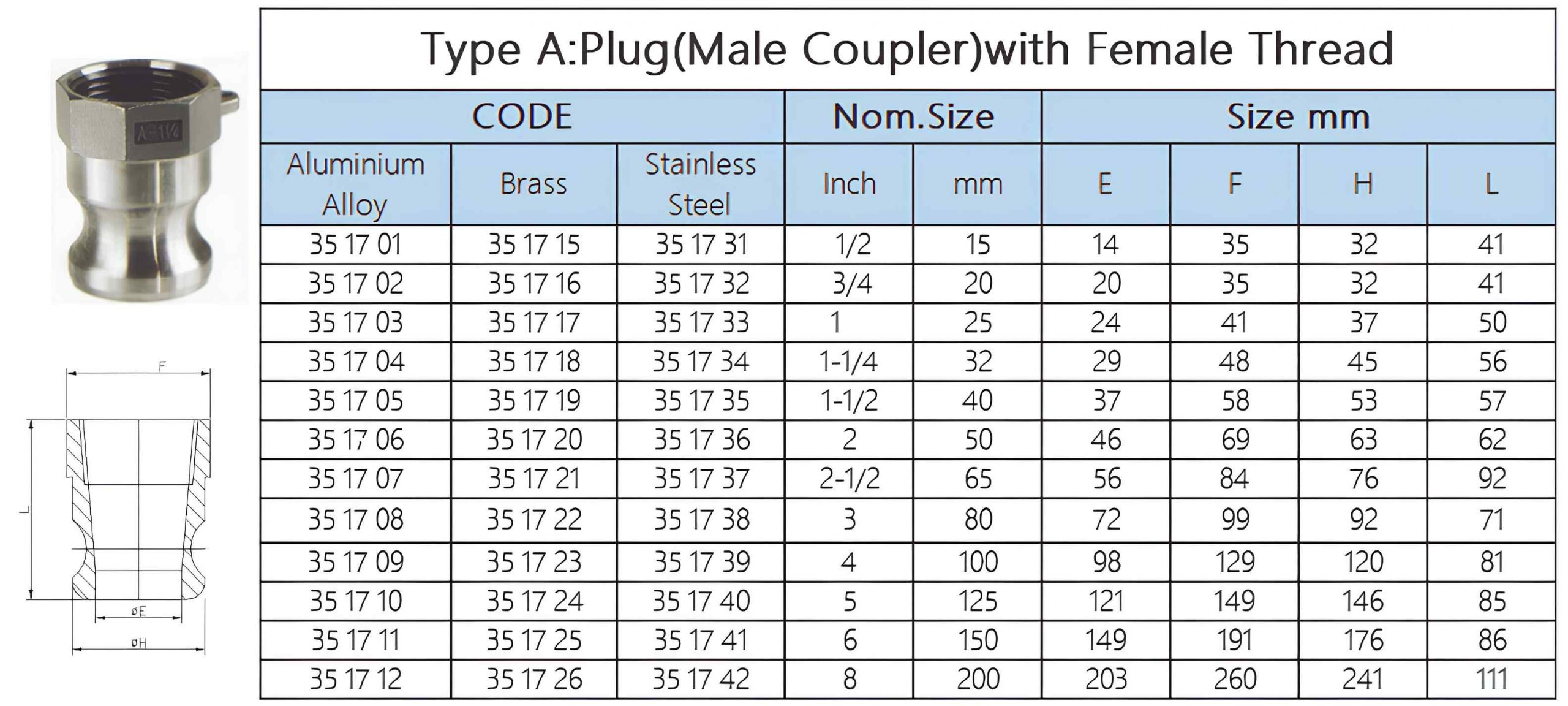

Size Chart
Product show
| Size | 351702, ALUMINIUM, 3/4", 351703,ALUMINIUM, 1", 351704, ALUMINIUM, 1-1/4", 351705, ALUMINIUM, 1-1/2", 351706, ALUMINIUM, 2", 351707, ALUMINIUM, 2-1/2", 351708, ALUMINIUM, 3", 351731, ST.STEEL, 1/2", 351732, ST.STEEL, 3/4", 351733, ST.STEEL, 1", 351734, ST.STEEL, 1-1/4", 351735, ST.STEEL, 1-1/2", 351736, ST.STEEL, 2", 351737, ST.STEEL, 2-1/2", 351738, ST.STEEL, 3", 351739, ST.STEEL, 4" |
|---|
